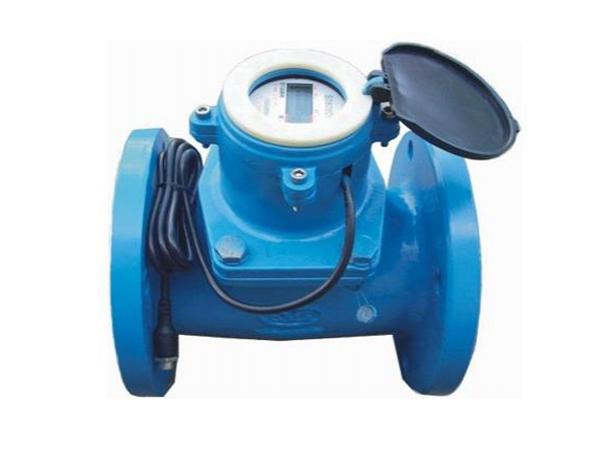

LXLY Woltmann Cold Water Meter

General introduction:
Our LXLY woltmann cold water meter is a horizontal woltmann-type meter designed for measuring bulk flows of cold potable water for revenue billing in commercial or industrial applications and district metered area (DMA) management, leakage monitoring, and consumption analysis of distribution monitoring system.

The electronic register and mechanic base are designed within one integral structure which is more reliable and easier for installation. The electronic register is self-powered by its own internal battery. This LXLY woltmann cold water meter is manufactured according to the ISO 4064:2005 and BS 5728 standards.

Technical specifications
LXLY performance(forward flow)
Meter size DN mm 50 80 100 150 200 250 300
DN inches 2 3 4 6 8 10 12
Maximum flow rate Q4±2% m3/h 31.25 78.75 125 312.5 500 787.5 1250
Nominal flow rate Q3±2% m3/h 25 63 100 250 400 630 1000
Transitional flow rate Q2±2% m3/h 0.25 0.63 1 2.5 4 6.3 10
Minimum flow rate Q1±5% m3/h 0.15 0.39 0.62 1.5 2.5 3.9 6.2
Measuring range Q3/Q1 H R160 R160 R160 R160 R160 R160 R160
Maximum electronic registration 99999.9999 99999.9999 999999.99 999999.99 999999.99 9999999.99 9999999.99
Maximum working pressure MAP MPa 1.0 1.0 1.0 1.0 1.0 1.0 1.0
MAP bar 10 10 10 10 10 10 10
Pressure loss classes Δp63(not exceed 0.063MPa, at any flow rate within the range Q1 to Q3)
Temperature classes MAT T30 T30 T30 T30 T30 T30 T30
Maximum water temperature (maximum of 2 hours) 50 50 50 50 50 50 50
Waterproof protection IP68 IP68 IP68 IP68 IP68 IP68 IP68

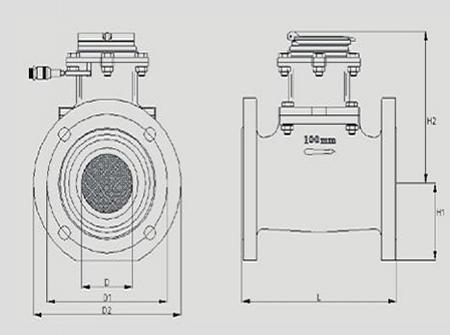

Size and Dimension
D Meter size DN mm 50 80 100 150 200 250 300
DN inches 2 3 4 6 8 10 12
L Meter length mm 200 200 250 300 350 450 500
H1 Centerline to bottom mm 92.5 99 108 136 163 190 222
H2 Centerline to top mm 202.5 210 211 248 248 335 335
D2 Flange diameter ISO 7005-2 mm 165 200 220 285 340 400 455
D1 Diameter of bolt circle ISO 7005-2 mm 125 160 180 240 295 350 400

Features and Benefits
1.Extended low and high flow performance
2. The measuring range (Q3/Q1) is 160, and the class of measurement is Class C.
3. Water temperature is up to50℃
4. Working pressure can be up to 16 bar (the default value is 10 bar)
5. Robust shield; electronic register
6. Electronic register is self-powered by an internal battery, up to 6 years in use
7. High contrast LCD in the electronic register for easy reading and information icons
8. Electronic register provides statistical data about consumption, profiles and pricing etc., frame data transmission according to Wasion BUS protocol
9. Waterproof protection of our LXLY woltmann cold water meter is IP68.
10. Integral structure; easy installation
11. Unique intelligent water management, with AMR software for data analysis and real-time monitoring
12. 1500 gauss magnetic field anti-interference
13. Our LXLY woltmann cold water meter is attached with filter, which minimizes the mechanical damage caused by foreign body obstruction

Robust Construction
The LXLY woltmann cold water meter is manufactured from the highest quality materials for maximum resistance to wear and corrosion. Meter body and cover are coated with epoxy powder for protection in all environments. Thrust pads and stub spindles are manufactured in tungsten carbide for maximum wear life. All wetted materials do no harm to human health.

Intelligent Meter Reading
Fully compatible with Wasion’s data collection device of intelligent meter reading systems, LXLY electronic bulk woltmann cold water meter can provide even more vital management information to assist with effective distribution management, reduce water losses from leakage and improve customer service.

In-line Strainer
The use of an in-line strainer is recommended to protect the rotor and help reduce the effect of turbulence.
