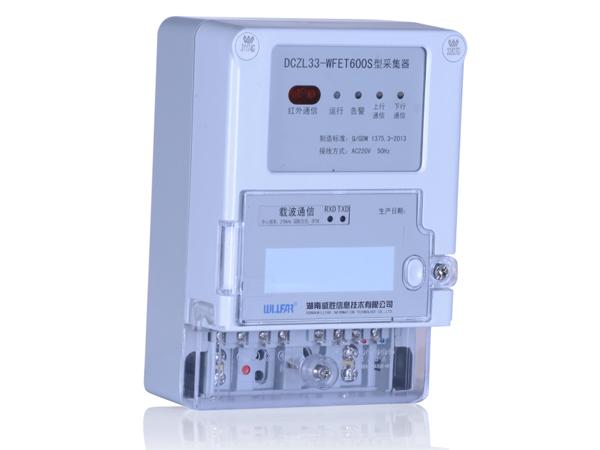

WFET-600S Electric Power Data Collector

General introduction:
WFET-600S electric power data collector is an acquisition device with acquisition and temporary storage function, which can realize the acquisition and temporary storage of data of electric meter with RS-485 interface, and use power line carrier, micro power wireless or other channels to upload the data to the concentrator, i.e. meter reading channel switching.

Technical specifications
Items Technical indexes
Standard Q/GDW 1374.2-2013, Q/GDW 1375.3-2013, QGDW 374.2-2009, Q/GDW 375.3-2009,
Q/CSG 11109005-2013, Q/CSG 11109006-2013
Communication protocol DL/T645-1997, DL/T645-2007
Communication mode Uplink: narrow band power carrier/broadband power carrier/micro power wireless, you can choose one according to the need
Local: 3 channel RS-485, 1 channel modulated infrared interface
Power supply Rated voltage:220V, allowable deviation:-30%~+30% Frequency:50Hz, allowable deviation:-6%~+2%
Working environment Working temperature:-45℃~+75℃; relative humidity:10%~100%; air pressure:63~108kPa
Overall power consumption Non-communication state, overall apparent power≤5VA, active power≤3W
Storage capacity It can save all the total active electricity data of all RS-485 watt hour meters at 48 hours, daily freezing data at 31 days' zero and 12 months' electric energy data
Clock High precision clock chip, clock error≤0.5s/d
Reliability MTBF≥7.6×104h
Structure Wall mount structure, size:160mm×112mm×71mm(length×width×height)

Main features
1. Wide working power supply range design, reaching up to ±30% of the rated voltage.
2. A large number of electric meters can be connected, and single channel RS-485 can connect 32 electric meters. Support 3 channels of RS-485 at most.
3. Uplink communication adopts modular design, supporting RS-485, narrow band power line, broadband power line and micro power wireless communication modules, convenient to replace the module.
4. Work without any settings: provided the connection is correct, our logger can work normally without any settings.
5. Simple and reliable, adopt control technology with multi-level protection measures

WILLFAR as a leading electric power data collector manufacturer, mainly manufacture meter data management instrument, there are main products like electrical power data logger, data concentrator, data collector, power quality analyzer, applied for precision data logging, electric power monitoring, data management and data transmission. To serve daily life much better, WILLFAR company also provides custom electrical meter and water meter data management solutions in client demands.
